CAMERA TRAFFIC COUNTERS
VISITOR COUNTINGCamera people counting sensors identify hot spots for the most efficient placement of displays and promotional material by analyzing dwell-time and other motion data, allowing you to maximize customer attention. With outstanding 3D image quality, excellent low-light sensitivity and very low latency, the new generation of people Sensors are the ideal platform for a wide range of predictive solutions that go far beyond counting.
The APS-90E combines a smart, highly dynamic stereoscopic camera with enough on-board computing power to pack precise image processing and feature-rich application software into an updated, sleek design.
The APS-180E boasts an intelligent, highly dynamic stereoscopic camera outfitted with precise image processing and feature-rich application software.

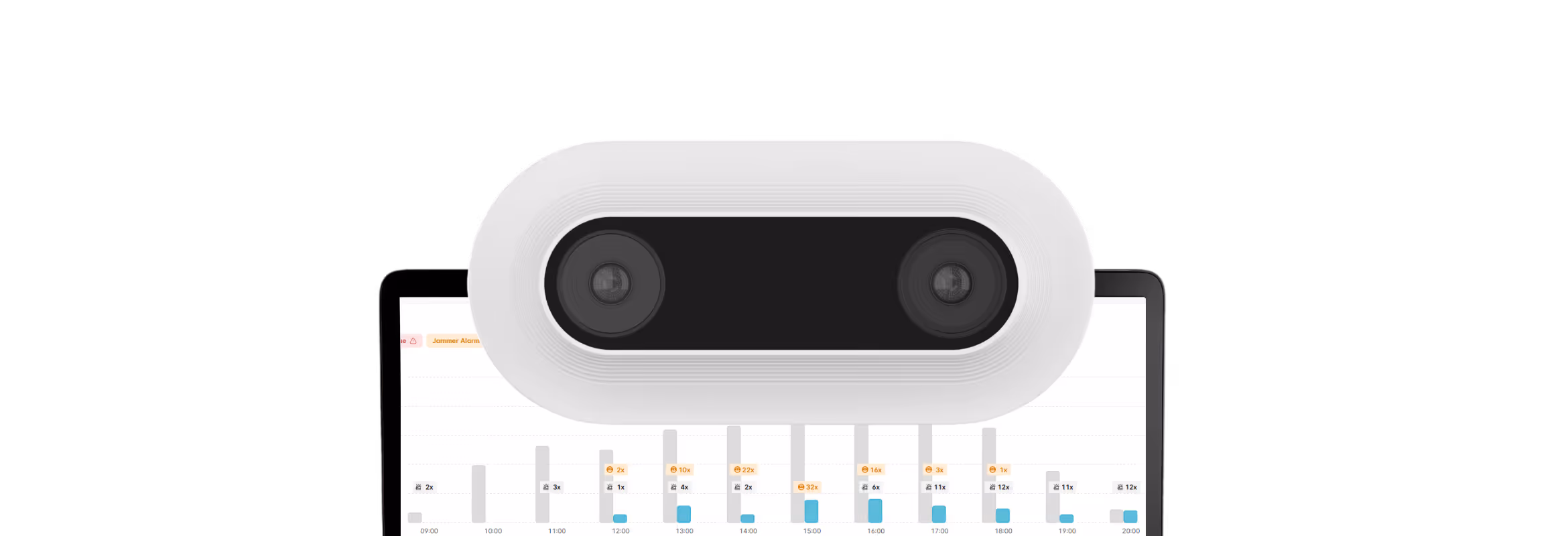

When connected to our Storemonitor cloud analytics all essential data from visitor counters, alarm management and system operation are available for further processing. You can evaluate your store or system performance in advanced graphs and overviews or set up reports to be automatically sent to your mailbox or uploaded to your existing system.
Real time occupancy is a new feature, which helps retailers to effectively regulate customer flow inside of a store. Not only up-to-date information on the occupancy of the store in real time is provided but also trends during the day can be showed. Its easy setup via Storemonitor website allows the store managers to change the maximum allowed number of people in the shop in relation with the currently valid safety restrictions and an individualized notifications projected on the LED panels for the public (red/green light).
- Remote maintenance and diagnostics
- MetalMagnet detection
- Visitor counting
- Additional alarm outputs
- Smart directional alarms
- Jammer detector
- Tag too close indication
- Decoration light
- ECO MODE enabled systems
| CAMERA COMPARISON APS-90E APS-180E | APS-90E | APS-180E | ||
|---|---|---|---|---|
| features/options | ||||
| OPERATING VOLTAGE | POE | POE | ||
| INGRESS PROTECTION | IP30 | IP40 | ||
| POWER CONSUMPTION | < 8W | < 8W | ||
| INSTALLATION HEIGHT | 2,0 - 6,0 m | 2,0 - 6,0 m | ||
| MONITORED AREA | Up to 4 m x 5 m | Up to 4 m x 5 m | ||
| HOUSING | ALUMINIUM & PLASTIC | ALUMINIUM | ||
| dimensions | poe | poe | ||
| HEIGHT | 4.0 cm | 3.7 cm | ||
| WIDTH | 16.0 cm | 23.7 cm | ||
| DEPTH | 4.0 cm | 9.9 cm | ||
| WEIGHT | 0.4 cm | 0.6 cm | ||
| INSTALLATION HEIGHT [cm] | width | depth | width | depth |
| 200 | 185 | 160 | ||
| 300 | 600 | 505 | 390 | 330 |
| 400 | 600 | 505 | 600 | 505 |
| 500 | 345 | 295 | 800 | 680 |
| 600 | 430 | 360 | 800 | 600 |
| 700 | 520 | 440 | ||
| 800 | 595 | 505 | ||
| 900 | 680 | 570 | ||
Power – Power-over-Ethernet (36-57 V DC) IEEE 802.3af, PD class
Consumption – aprox. 8 W
AMERSEC® has been providing premium European-made security solutions for retailers since 1996. With over 27 years of experience and together with our global network of partners we are poised to deliver the best solution for your business.
