FLOOR SYSTEMS

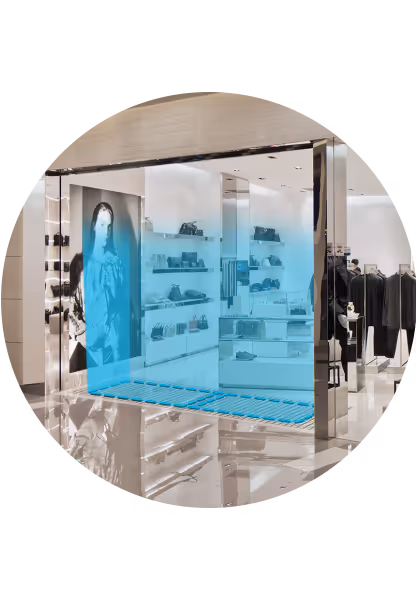

Discreet AM (Acousto-Magnetic) system designed to keep store aesthetics unchanged and undisturbed while keeping merchandise protected. The Floor Loop is fitted under the flooring materials with essential service components placed in an accessible location.
The AM Floor Loop is based on our AM ACE technology and programmed with our super- sensitive proprietary application, which assures excellent detection of adhesive labels and security tags, all while keeping the self- assured look of a luxury store intact.
If there is a need for some extra detection on top of the performance of our Floor antennas, two type of extenders mounted on the ceiling can be used. With their unobtrusive design, the extenders seamlessly blend into premium retail spaces without being noticed by the customers and offer additional features such as decoration lights.
In addition to these powerful features our systems are ECO MODE enabled. This power-saving tool helps you minimize electricity consumption which
increases the lifespan of the system, saves costs, and is
environmentally friendly.
Remote connectivity and data collection are standard inbuilt features of the AM Floor systems. It ensures that our systemsare not only easy to install but can also be serviced and maintained remotely with fast response and without unnecessary
travel costs.
When connected to our STOREMONITOR cloud analytics all essential data from visitor counters, alarm management and system operation are available for further processing. You can evaluate your store or system performance in advanced graphs and overviews or set up reports to be automatically sent to your mailbox or uploaded to your existing system.
- Remote tuning and maintenance
- STOREMONITOR compatibility
- Inbuilt jammer detection
- Event management
- Additional relay output
- Audible alarm
- Tag-too-close
- High resistance to interference
- ECO MODE enabled system
AM FLOOR ANTENNA
AS-FLOORThe Floor loop is designed to be durable and lightweight for the purpose of installing under the floor surface. The material allows it to be covered in concrete or mounted within a hollow sub-surface.
CABLE LENGTH: 4 m
LENGTH: 1679 mm
WIDTH: 426 mm
HEIGHT: 26 mm
WEIGHT: 4.5 kg
AM FLOOR ANTENNA XL
AS-FLOORLThe XL Floor antenna is a lightweight antenna with extended detection performance. One of its benefits is easier installation compared to other floor systems on the market.
CABLE LENGTH: 4 m
LENGTH: 1716 mm
WIDTH: 858 mm
HEIGHT: 27 mm
WEIGHT: 7 kg
AM FLOORMAT ANTENNA
AS-FLOORMThis is a fully discreet system that leaves the floor completely intact. The Floormat antenna is integrated in the cleaning zone hidden under the carpet.
CABLE LENGTH: 4 m
LENGTH: 1791 mm
WIDTH: 991 mm
HEIGHT: 20 mm
WEIGHT: 25 k
AM FLOOR EXTENDER*
AS-REXFWThe Floor Extender is perfectly suitable for any checkout area in grocery stores as well as any other retailer. This solution offers audible and visual alarms and can be graphically customized.
CABLE LENGTH: up to 12 m
LENGTH: 420 mm
WIDTH: 66 mm
HEIGHT: 330 mm
WEIGHT: 3,5 kg
CONTROLLER UNIT AM FLOOR ALARM BOX
AS-CUV2, AD-FTBWThe controller unit is the software-configurable processor that utilizes the same framework which powers our door loop systems. It can be networked for remote service and data collection, and additional alarm outputs allow for extra alarms or CCTV systems to be connected.
LENGTH: 130 mm
WIDTH: 293 mm
HEIGHT: 296 mm
WEIGHT: 6.7 kg
ACE CONTROLLER UNIT
AS-ACUThe ACE controller unit is the software-configurable processor which powers the floor antennas. It can be networked for remote service and StoreMonitor data collection
LENGTH: 289 mm
WIDTH: 230 mm
HEIGHT: 46 mm
WEIGHT: 2 kg
* If extenders are offered together with the Floor systems, the Controller unit with Tuning Box is required, otherwise all Floor systems are powered by the ACE Controller unit.
AMERSEC® has been providing premium European-made security solutions for retailers since 1996. With over 27 years of experience and together with our global network of partners we are poised to deliver the best solution for your business.
